16mm Poly H Profile – Clear

Name: 16mm Poly H Profile - Clear
SKU: P16100H
Price: 52.00 USD
Availability: InStock

$52.00

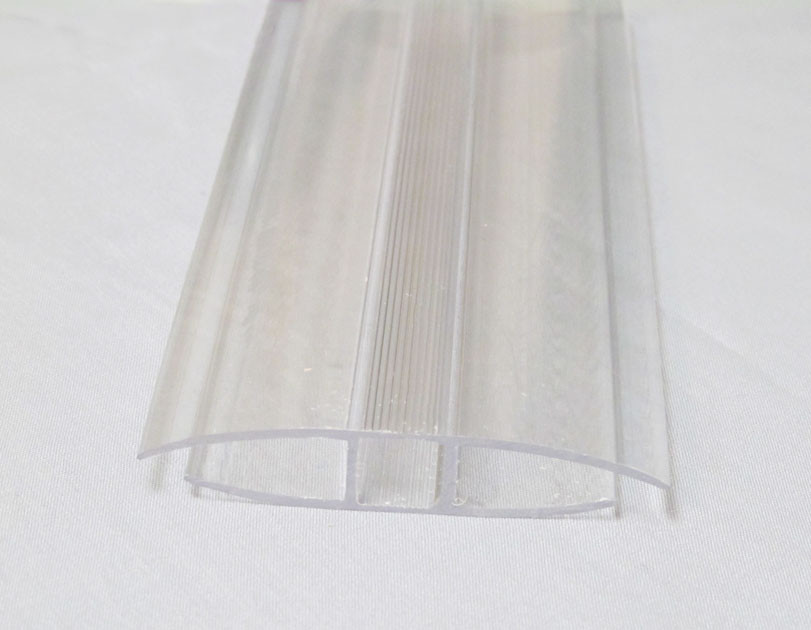

The clear polycarbonate H-profile is used to connect two sheets of multiwall polycarbonate.

Size

16mm – 2pcs @ 12'
16mm – 3pcs @ 8'
16mm – 4pcs @ 6'
16mm – 6pcs @ 4'
16mm 24'

Clear

Learn more about this product

Description

The clear polycarbonate H-profile is used to connect two sheets of multiwall polycarbonate. The polycarbonate H-profile does not add to the structural value of the application. This polycarbonate profile can be cut to any length.

Important Shipping Information: If you are purchasing both polycarbonate panels and polycarbonate profiles, the profiles will be cut to the same length as the longest panel in your order. If you do not want the profiles cut down, please contact us prior to ordering for special shipping accommodations.

Additional information

Weight	3 lbs
Dimensions	288 × 3.875 × 0.75 in
Color	Clear
Crate	Crate
Hide Price	No
Is Featured Product	0
Lucene Indexed?	Yes
Material Thickness	16
Must ship freight	1
Non Crate Length	144, 288, 48, 72, 96
Position in search results	Default
Ship Separately	0
Size	16mm – 2pcs @ 12', 16mm – 3pcs @ 8', 16mm – 4pcs @ 6', 16mm – 6pcs @ 4', 16mm 12', 16mm 24', 16mm 8', 288" Long
Volume/Size of Unit Product	1
Product Type	Polycarbonate Channels

Product Details

Color: Clear
UV Extruded: Yes
Warranty: None
Watertight: No
For Vertical Use

Install Tips

To connect tight profiles to the sheet, use a standard dish soap. Squirt it directly on the panel right along the edge of the sheet.
Snap the profile on to the side of the sheet versus sliding it along the side.
Use a plastic putty knife to pry apart the profile if it is tight.
Do not use Vaseline or WD-40 in order to assist with connecting the profile to the sheet.
